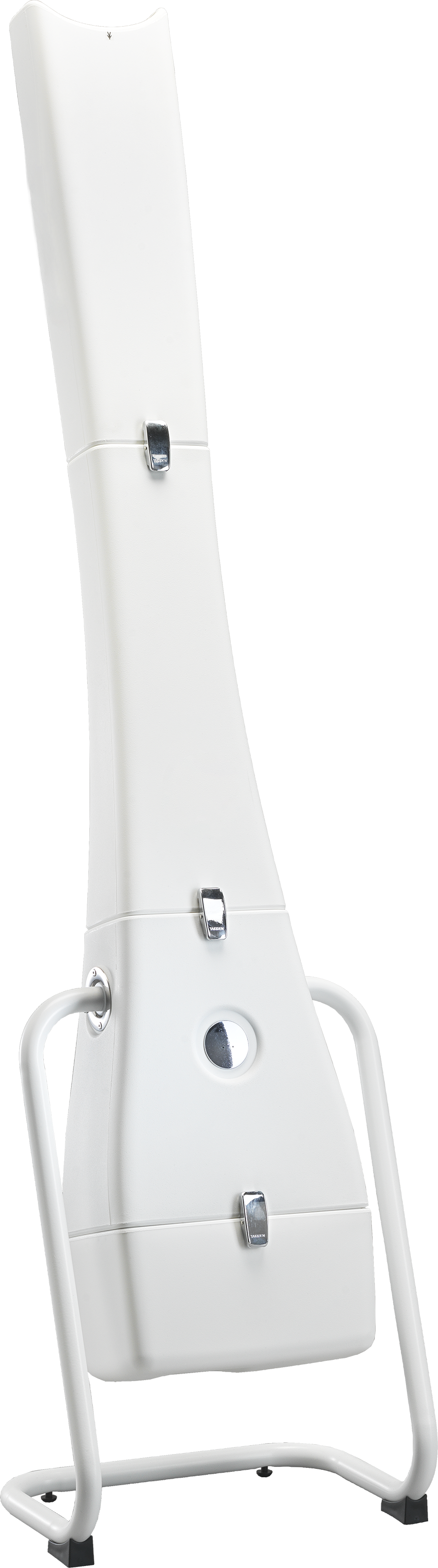

Titmus Kaleidos Vision Screener and Autorefractor 2WIN-S-Plus

Description

Kaleidos is an autorefractive vision screener that checks for amblyopia risk factors such as myopia, hyperopia, astigmatism and other sight anomalies in all ages. Takes a screening in just 3 seconds and is controlled via tablet (included) through a user-friendly application. The Kaleidos is easy to use as no special technique, dark room or distance guessing is required. The device serves as a portable dark room that allows refractive examination in any environment and light condition. 2 year manufacturer warranty.

Technical Information

• Operating mode: Binocular/monocular
• Refraction Measurement: Automatic
• Sphere range: ±15 D
• Cylinder range: ±5 D
• Cylinder axis: 1° – 180°, step 1°
• Pupil size: 4-11 mm, step 0.1 mm
• Pupil distance: Automatic detection, 30-120 mm, step 1 mm
• Fixation target: Built-in
• Acoustic target: Built-in
• Measurement: Patient – Operator distance > 1 m (~3 feet)
• User Interface: Android application for Wi-Fi tablets, providing remote control, live streaming, data management
• Data Interface: Wi-Fi, internal microSD card
• Printer Interface: Wi-Fi and email printing
• Tube Size: 180 x 26 x 14 cm (71 x 10 x 6 inches)
• Metal Stand Size: 41 x 44 x 32 cm (16 x 17 x 13 inches)
• Max height operation system: 129 cm (50 inches)
• Net Weight: 3.8 kg (8.3 lbs)
• Power: Rechargeable battery pack, 50 Wh
• Battery Charge: AC/DC medical power supply 18V, 40 W

Documentation

• Titmus Kaleidos Brochure
• Titmus Kaleidos Video
