Titmus V2 Occupational Letters Vision Screener 19112

Titmus V2 Occupational Letters Vision Screener 19112

Regular price $3,300.00
Regular price $4,015.00 $3,300.00
Your Price Sold out
  • Authorized Titmus Dealer
  • 2 Year Manufacturer Warranty
  • In Stock
View full details


The Titmus V2 Occupational Letters Model is used by Occupational Health Professionals for screening the vision of employees for various job functions, such as clerical, factory workers, forklift drivers, DOT testing, and many more.

Included are tests for Visual Acuity (using Snellen Letters), Binocular Vision, Depth and Color Perception, Muscle Balance (horizontal/vertical phoria), and peripheral vision.

Standard Accessories

  • 8 Test slides made from high-grade photographic film sealed between optical-quality glass.
  • Training manual.
  • Record forms - pad of 100 forms to record test results.
  • 10 Lens-cleaning wipes
  • Package of 3 fog eliminator cloths.
  • Dust cover for instrument storage

Compact and Portable

Features a built-in handle for ease of transport. Optional carrying case with wheels available.


Unique design that accommodates both adults and children, either standing or seated. Ensures patient is in a comfortable position for testing – needed for efficient and accurate testing.


Tests at 20 feet (6m) for FAR and 14 inches (35cm) for NEAR vision. A variety of tests are available to screen for visual acuity, muscle balance binocular vision. Total of 16 tests per vision screener (based on slide set selected).

Fluorescent Light Source

Improves slide illumination, replicates actual daylight conditions, and provides
true color testing. Light will give years of extended service (10,000 hours).

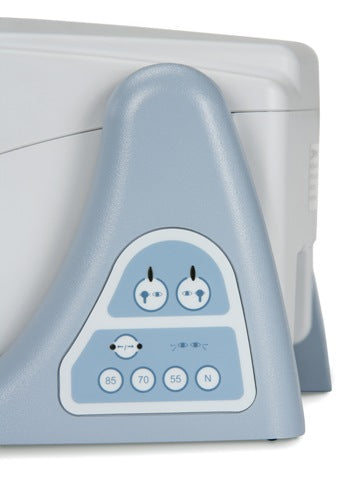

Membrane Control Panel

Built–In Membrane Switches: The instrument has a manual wheel to advance test slides and includes built-in membrane switches to occlude each eye and control peripheral vision test lights to indicate when to replace light

Foam Headrest

Soft headrest to ensure correct head position and is easy to clean.

Peripheral Vision Testing

Performs peripheral vision testing in the horizontal visual field at 85°, 70°, 55° and nasal 45° for each eye.

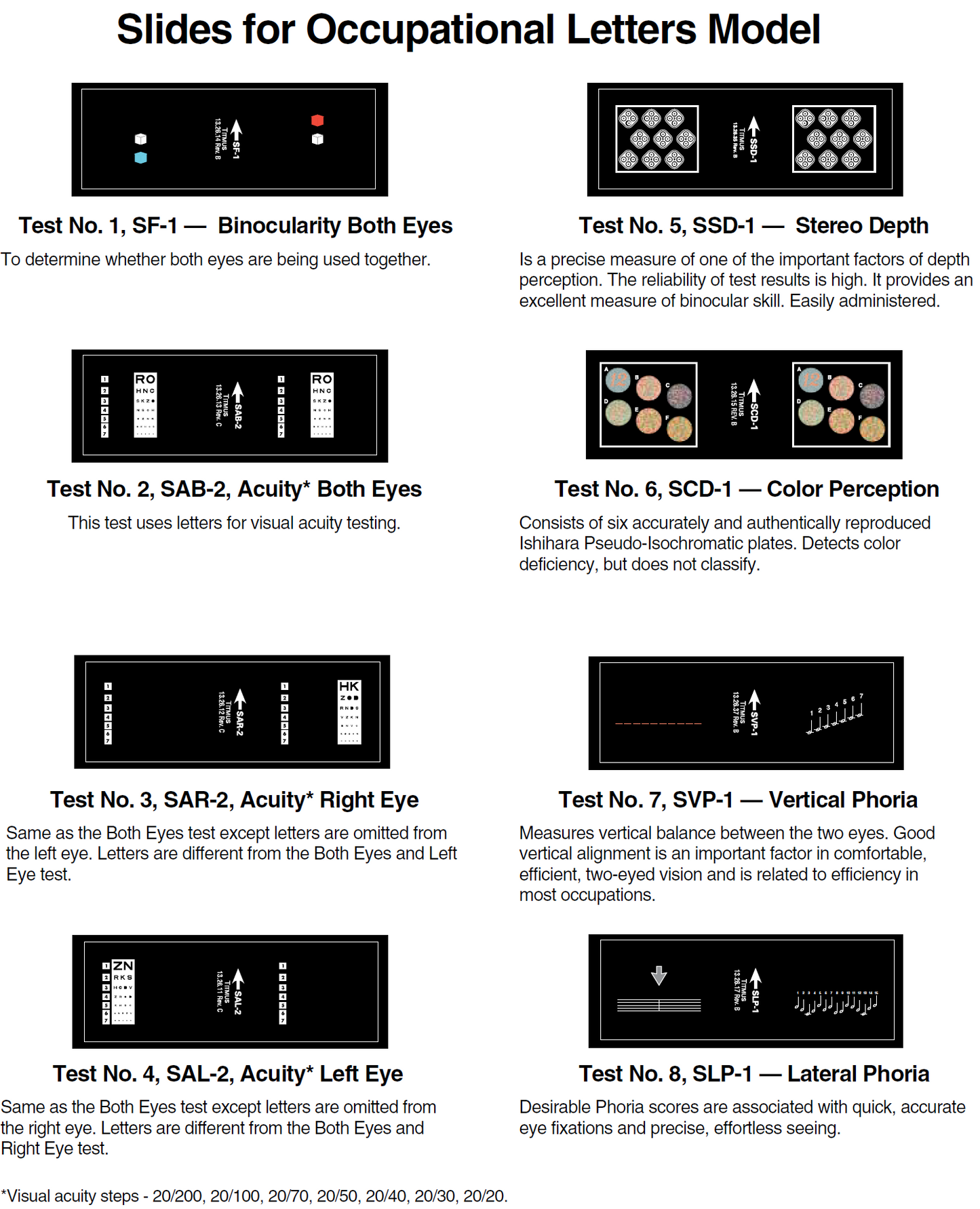

Occupational Letters Slide Set

Visual acuity steps - 20/200, 20/100, 20/70, 20/50, 20/40, 20/30, 20/20

Technical Specifications

 Manufacture Titmus
Dimensions (closed position) 11" W x 17" L x 7.75" H (28 x 43 x 19 cm)
Weight 13 lbs (6 kg)
Testing Parameters Binocularity
Stereo depth
Color perception
Vertical phoria
Lateral phoria
Night vision
Temperature/Humidity Temp: +50°F to +104°F (+10°C to +40°C)
Hum: 30% to 75%
Operation Method Built-in membrane control on the base of the machine
Test Slide Advance/Reverse Manual via thumb wheel
Comfort Height Adjusting Yes
Light Source True White-light Fluorescent Light Module
Head Positioning Sensor No
Power Supply 110-240 VAC, 0.4-0.2 A, 50/60 Hz
Illumination Per ISO 8596 and ANSI Z80.21 Stds
Cords Power cord, length 10 ft / 3 m, Control panel
cord, FireWire connector, length 3 ft / 1 m
Standards Meets the following CE, UL, and CSA Standards. Europe: EN
60601-1, IEC 60601-1, 3rd ed, Class I, Annex IX of MD D 93/42/
EEC USA: AAMI ES 60601-1 Canada: CSA-C22.2, No. 601.1-M90,
Class I Device, CB Scheme: IEC 60601-1
