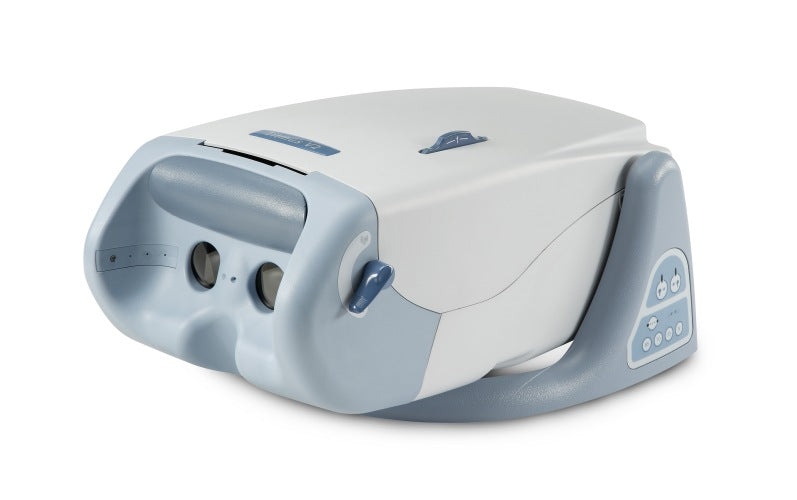

Description
The Titmus V2 Pre-School Model is used by Nurses for general vision screening for pre-school children.
Included are tests for Visual Acuity, Binocular Vision, Color Perception, Muscle Balance (horizontal/vertical phoria), and peripheral vision.
Standard Accessories
- 8 Test slides made from high-grade photographic film sealed between optical-quality glass.
- Training manual.
- Record forms - pad of 100 forms to record test results.
- 10 Lens-cleaning wipes
- Package of 3 fog eliminator cloths.
- Dust cover for instrument storage

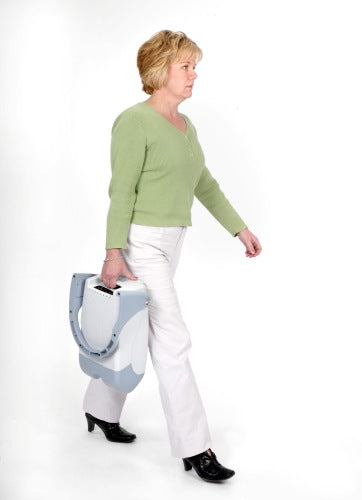

Compact and Portable
Features a built-in handle for ease of transport. Optional carrying case with wheels available.

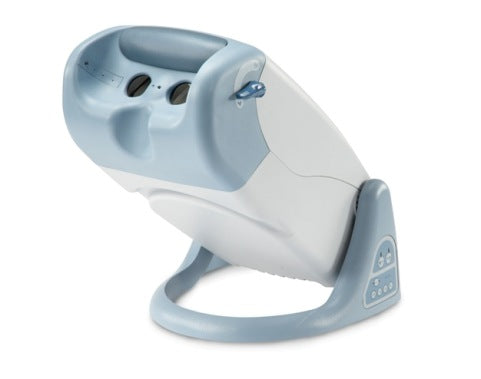

Ergonomics
Unique design that accommodates both adults and children, either standing or seated. Ensures patient is in a comfortable position for testing – needed for efficient and accurate testing.
Testing
Tests at 20 feet (6m) for FAR and 14 inches (35cm) for NEAR vision. A variety of tests are available to screen for visual acuity, muscle balance binocular vision. Total of 16 tests per vision screener (based on slide set selected).
Fluorescent Light Source
Improves slide illumination, replicates actual daylight conditions, and provides
true color testing. Light will give years of extended service (10,000 hours).

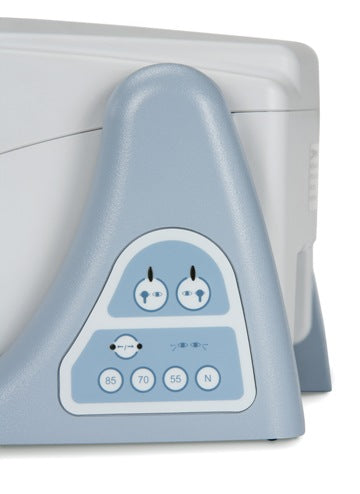

Membrane Control Panel
Instrument controls are located at your fingertips for ease of operation. Ease of placement – helps where space is limited. Indicators on the panel for far/near,
patient head position, eye occlusion, and test slide position. The membrane Panel indicates when to replace the light.
Foam Headrest
Soft headrest to ensure correct head position and is easy to clean.
Head Sensor
Electronic check to ensure correct head position. The patient cannot see tests
if the head is incorrectly positioned.
Peripheral Vision Testing
Performs peripheral vision testing in the horizontal visual field at 85°, 70°, 55° and nasal 45° for each eye.

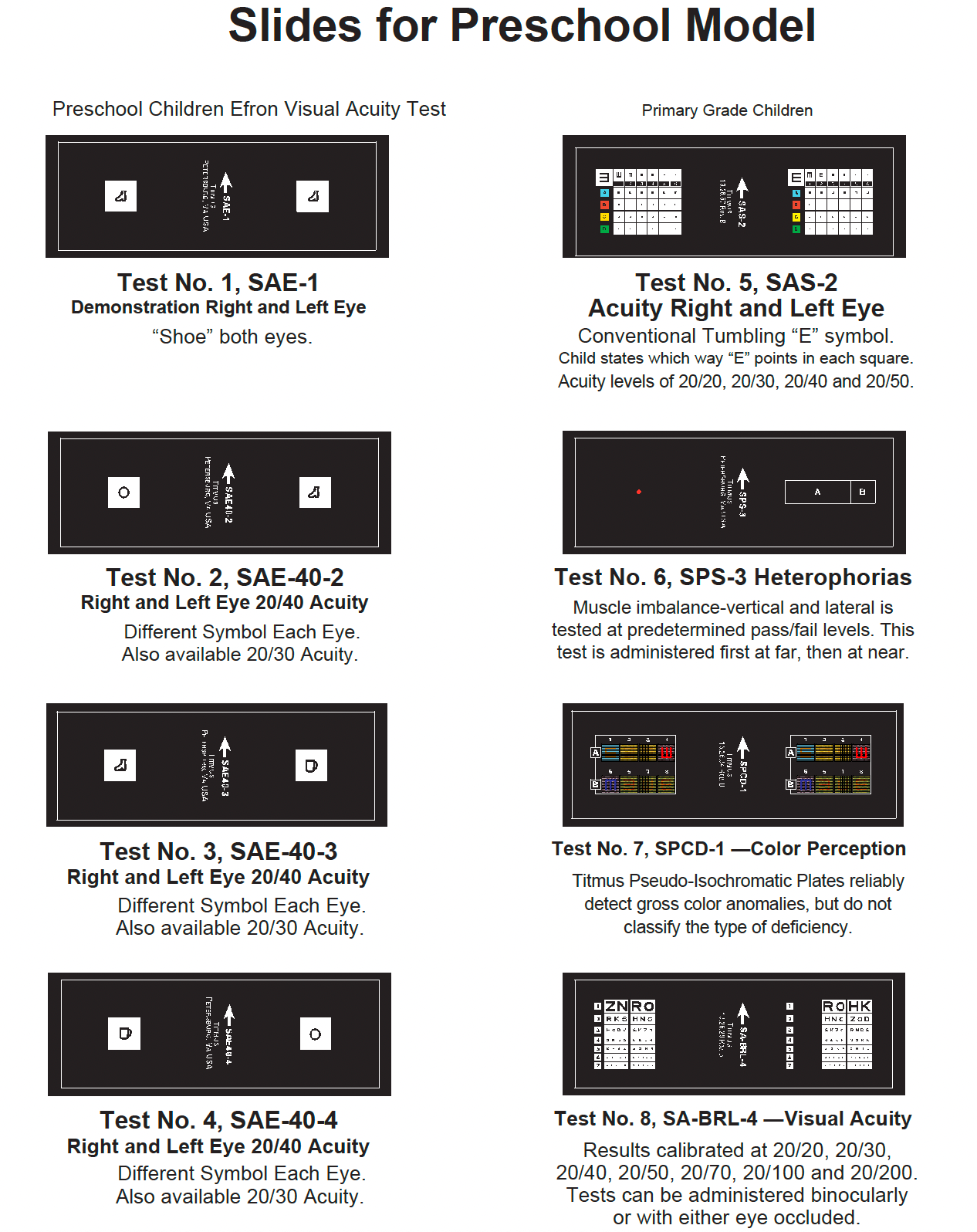

Pre-School Slide Set
Technical Specifications
Manufacture | Titmus |
Dimensions (closed position) | 11" W x 17" L x 7.75" H (28 x 43 x 19 cm) |
Weight | 13 lbs (6 kg) |
Testing Parameters | Binocularity Acuity Color perception Vertical phoria Lateral phoria Peripheral Night vision |
Temperature/Humidity | Temp: +50°F to +104°F (+10°C to +40°C) Hum: 30% to 75% |
Operation Method | Built-in membrane control on the base of the machine |
Test Slide Advance/Reverse | Manual via thumb wheel |
Comfort Height Adjusting | Yes |
Light Source | True White-light Fluorescent Light Module |
Head Positioning Sensor | Yes, the Non-contact infrared sensor |
Power Supply | 110-240 VAC, 0.4-0.2 A, 50/60 Hz |
Illumination | Per ISO 8596 and ANSI Z80.21 Stds |
Cords | Power cord, length 10 ft / 3 m, Control panel cord, FireWire connector, length 3 ft / 1 m |
Standards | Meets the following CE, UL, and CSA Standards. Europe: EN 60601-1, IEC 60601-1, 3rd ed, Class I, Annex IX of MD D 93/42/ EEC USA: AAMI ES 60601-1 Canada: CSA-C22.2, No. 601.1-M90, Class I Device, CB Scheme: IEC 60601-1 |
