Titmus V4 Occupational Letters Vision Screener 19089

Description

The Titmus V4 Occupational Letters Model is used by Occupational Health Professionals for screening the vision of employees for various job functions, such as clerical, factory workers, forklift drivers, DOT testing, and many more.

Included are tests for Visual Acuity (using Snellen Letters), Binocular Vision, Depth and Color Perception, Muscle Balance (horizontal/vertical phoria), and peripheral vision.  Also, the ability to test Night vision is included.

Standard Accessories

• 8 Test slides made from high-grade photographic film sealed between optical-quality glass.
• Training manual.
• Record forms - pad of 100 forms to record test results.
• 10 Lens-cleaning wipes
• Package of 3 fog eliminator cloths.
• Dust cover for instrument storage

Compact and Portable

Features a built-in handle for ease of transport. Optional carrying case with wheels available.

Ergonomics

Unique design that accommodates both adults and children, either standing or seated. Ensures patient is in a comfortable position for testing – needed for efficient and accurate testing.

Testing

Tests at 20 feet (6m) for FAR and 14 inches (35cm) for NEAR vision. A variety of tests are available to screen for visual acuity, muscle balance binocular vision. Total of 16 tests per vision screener (based on slide set selected).

Fluorescent Light Source

Improves slide illumination, replicates actual daylight conditions, and provides
true color testing. Light will give years of extended service (10,000 hours).

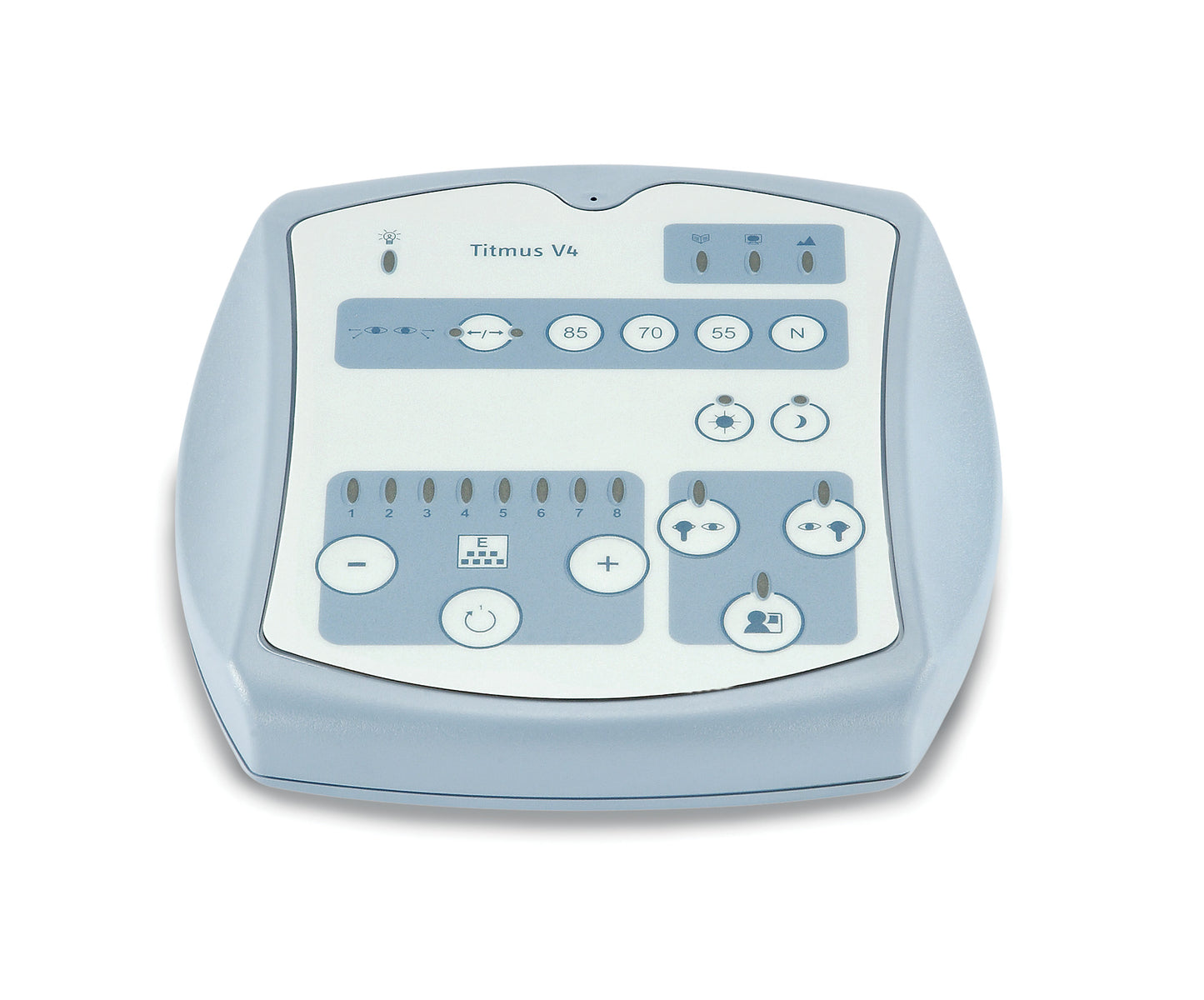

Membrane Control Panel

Instrument controls are located at your fingertips for ease of operation. Ease of placement – helps where space is limited. Indicators on the panel for far/near,
patient head position, eye occlusion, and test slide position. The membrane Panel indicates when to replace the light.

Foam Headrest

Soft headrest to ensure correct head position and is easy to clean.

Head Sensor

Electronic check to ensure correct head position. The patient cannot see tests
if the head is incorrectly positioned.

Peripheral Vision Testing

Performs peripheral vision testing in the horizontal visual field at 85°, 70°, 55° and nasal 45° for each eye.

Night Vision Testing

Can screen vision at night-driving conditions.

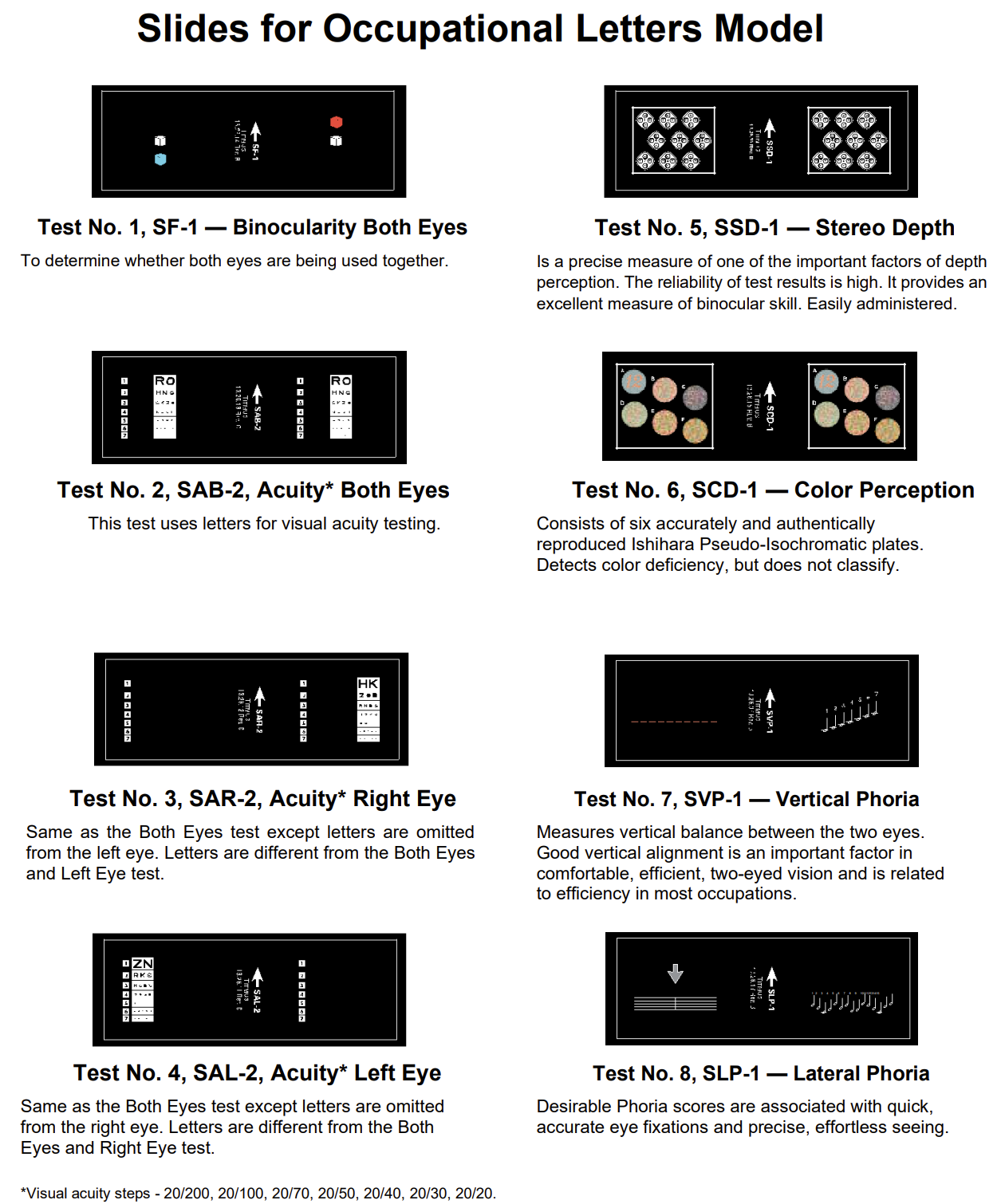

Occupational Letters Slide Set

Visual acuity steps - 20/200, 20/100, 20/70, 20/50, 20/40, 20/30, 20/20

Technical Specifications

Documents

Titmus Rebate Form

Occupational Letters Model Slides V4/V2

Titmus V4 Datasheet

Titmus V4/V2 Manual
