Welch Allyn Spot Vision Screener and Autorefractor

Welch Allyn Spot Vision Screener and Autorefractor

$8,578.00
$10,118.25 $8,578.00
Your Price Sold out
  • Welch Allyn
  • 1 Year Manufacturer Warranty
  • Potential Lead-Time
View full details

Description

  • Supports AAP screening guidelines for early detection of amblyopic risk factors
  • Automated screening provides thorough, objective, and easy-to-understand results
  • Easy to use, easy to implement with minimal user training required
  • Adequately powered for mass screening events
  • Captures readings 97% of the time helping to screen otherwise difficult patients
  • Wireless printing and WiFi-enabled for easy export of data

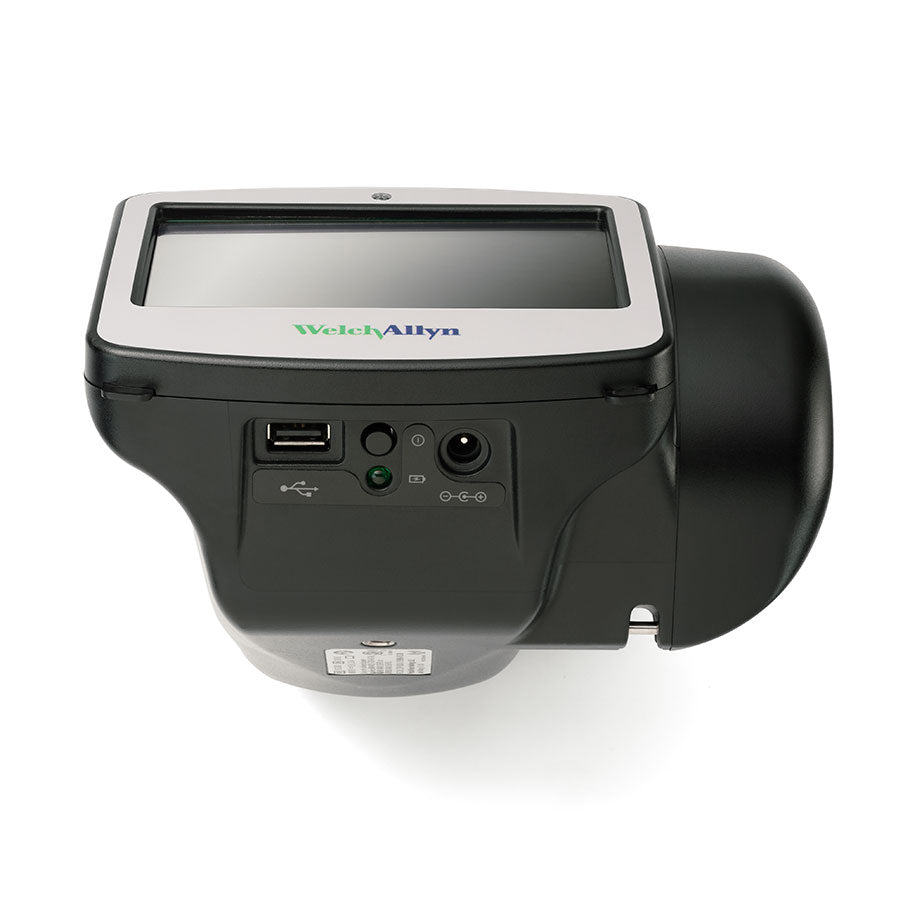

  • Manual exports available via USB port
  • Uses lights and sounds to help engage children



Accurate Detection

Spot accurately detects the potential indication of these common vision problems:

  • Myopia (nearsightedness)
  • Hyperopia (farsightedness)
  • Astigmatism (blurred vision)
  • Anisometropia (unequal refractive power)
  • Strabismus (eye misalignment)
  • Anisocoria (unequal pupil size)
  • *Accuracy refers to the sensitivity and specificity of the screening referral recommendation.

Technical Specifications

  • Dimensions: 8 1/2" x 6 3/4" x 4 3/4" (21.6 cm x 17.1 cm x 12.1 cm)
  • Weight: 2.55 lbs (1157 g)
  • Wireless Network: 802.11 b/g/n
  • Operating Temperatures: 50°F to 104°F (+10°C to +40°C)
  • Operating Humidity: 30% to 75% relative humidity (non-condensing)
  • Storage/Shipping Temperatures: 32°F to 122°F (0°C to +50°C)
  • Storage/Shipping Humidity: 0% to 95% relative humidity (non-condensing)
  • Storage/Shipping Atmospheric Pressure: 800 hPA to 1060 hPA
  • Expected Battery Life: 2.5 years (Under Normal Usage)
  • Measurements
    • Spherical Equivalent
      • Range: -7.50D to +7.50D in 0.25D increments
      • Accuracy:
        • -3.50D to 3.50D, ± 0.50D
        • -7.50D to < -3.50D, ± 1.00D
        • > 3.50D to 7.50D, ± 1.00D
      • Cylindrical Axis
        • Range: 1 to 180 degrees in 1-degree increments
        • Accuracy: ± 10 degrees (for cylinder values > 0.5D)
      • Pupil Size
        • 3.0 mm to 9.0 mm in 0.1 mm increments in ± cylinder
        • Accuracy: ± 0.4 mm
      • Pupil Distance
        • Range: 35 mm to 80 mm in 1 mm increments
        • Accuracy: ± 1.5 mm
      • Gaze Measurement
        • 0 to 20 degrees in increments of 1 degree nasal, temporal, inferior, and superior
        • Accuracy: ± 1.5 degrees
      • Time Per Measurement: Second(s)
      • Measuring Distance: 3.3 ft ± 2 in (1 m ± 5 cm)
      • Fixation Target: Random visual pattern and audible sound
      • Measurement Principal: Optical reflex

Warranty Information

1-Year Warranty

Documents

Manual
